| Can Sealing Machine |
¡@ |
|
SL500 |
SL15HS |
SL15H |
|
|
|
 |
Contamination-free environment. |
|
|
Capacitor discharge power supply guarantees weld stability. |
|
|
Capacitor voltage precisely charged by microprocessor control system. |
|
|
Eliminates heat build-up in sensitive parts. |
|
|
Two conductors on opposite sides provide even current flow. |
|
|
The force system combined with hardened slide, linear ball bearings and coil spring, providing smooth and rapid follow-up movement. |
|
|
All solid state welding control & modular design simplifies maintenance. |
|
¡@ |
|
 |
|
|
 |
| Specifications¡G |
Model
|
Power Supply |
Rated Frequency |
Rated Input |
Stored Energy |
Capacitor Bank |
Charge Voltage |
Max.
Electrode |
Electrode Stroke |
Welding Capacity |
V |
Hz |
KVA |
W-S |
£gF |
DC-V |
kgf |
mm |
/ |
|
| SL500 | 220 | 50/60 | 1 | 500 | 5400 | 0-450 | 150 | 35 |

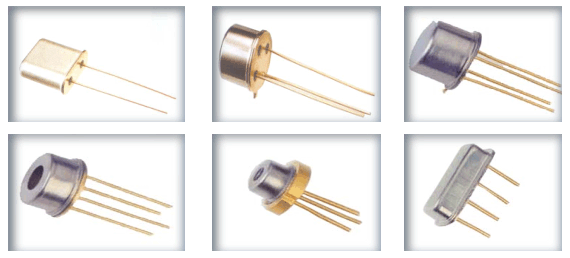

TO-38 |
| SL500 | 220 | 50/60 | 1 | 500 | 5400 | 0-450 | 150 | 60 | |
| SL10H | 220 | 50/60 | 2 | 1000 | 10800 | 20-450 | 150 | 60 |
TO-5 |
| SL10HS | 220 | 50/60 | 2 | 1000 | 10800 | 20-450 | 150 | 60 | |
| SL15H |
220 |
50/60 |
3 |
1500 |
18000 |
20-450 |
250 |
40 |
TO-8 |
| SL15HS |
220 |
50/60 |
3 |
1500 |
11250 |
20-450 |
250 |
50 |
¡@
